เครื่องเจาะกระดาษไฟฟ้า UCHIDA รุ่น D-5 Paper Drilling Machine Uchida Model D-5

หน้าแรก » อุปกรณ์สำนักงาน » อุปกรณ์สำนักงานอื่นๆ

เครื่องเจาะกระดาษไฟฟ้า UCHIDA รุ่น D-5 Paper Drilling Machine Uchida Model D-5

แบ่งปันให้เพื่อน



Uchida Driller D5

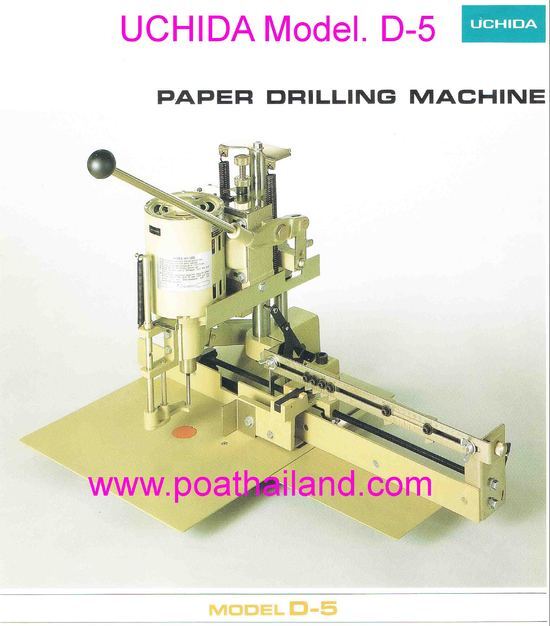

Uchida D-5 Paper Drilling Machine



The D-5 is a heavy duty drilling machine for the commercial printer and busy In-Plant alike, offering extremely good value for money. A rugged construction incorporates solid castings for absolute rigidity. The unique programming facility is quick to set for any size and combination of holes, and microadjustment enables accurate positioning. Direct drive from the 2875 R.P.M. induction motor ensures smooth, effortless operation, enabling a 50mm plie to be drilled in less than one second.
Standard Equipment - 3 hollow drill bits (4, 5, 6mm), 5 fiber plugs, 4 adjustable stops and a standard 80mm stop-guage. Tools for maintenance included cleaning awl, sharpner for hollow drill bits, 3 L-shaped wrenches, spare screws and a whet-stone.
Optional Equipment - Hollow drill bits of 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7 and 8mm diameters. Stop-gauges for use when over 4 holes per drilling operation is needed. 36 hole, as well as computer form, stop-gauges are available.

*Stop-gauges with 80mm spacing between holes and 4 adjustable stops for free spacing of holes are standard.
*Optional 36 hole, 9.5mm spacing for Book leaf binder; 40hole, 6.35mm spacing for Punch card; 26 hole, 12.7mm spacing for Computer form stop-gauges are available.
*Back margin adjustable from 0 to 215mm.
*Chips pass thru hollow drill bit and empty in waste chute.
*Spring-activated trip handle automatically releasese table to be moved to next drilling position and locks table into position.
*Hollow drill bits are made of specially treated tool steel.
*High-speed motor for fast, clean, vibration free drilling.

Max drilling thickness 50 mm

Max paper size 420 mm (A3 longitudinal)

Drilling diameter 3-13 mm (*1)

Back margin 5-215 mm

Side margin(*2) 0-360 mm

Selection of pitch Freely adjustable by universal pitch bar (*3)

80mm pitch : by standard equipment of the pitch gauge

Paper carriage : Manual (Table fixing)

Table size : 560W x 420D mm

Power source : 110,120 or 230VAC / 50-60Hz

net weight : 45kg

Dimension s : 780W x 580D x 800H mm

Optional pitch gauge :

1) 30 holes, 9.5mm pitch

2) 23 holes, 1/2" pitch

3) 40 holes, 6.5mm pitch



*(1) for 9-13mm drill bit, optional adapter is required

*(2) Center of hole to side guide plate

*(3) 4 blocks adjustable to any positions.
