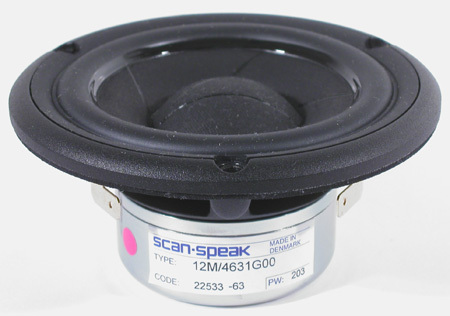

Scan-speak Revelator 4.5" Midrange (ใหม่)

The 12M/4631G is a Revelator driver using the “slit cone" technology. Some of the slits are used to control cone resonance and the other set of slits add rigidity. This speaker also has the new dynamic linear suspension for lower compression and higher linearity. Every facet of this driver is designed to reduce resonance in all structures. A neodymium magnet has been chosen to reduce the depth, yet increase the magnetic energy. The short field length of a neodymium magnet also allows this driver to by used for A/V.

TECHNICAL DATA:
Sensitivity 2.83V/1M 89dB
Free air resonance Fs 75 Hz
DC resistance 3.2 W
V.C. inductance 0.22 mH
Power 40W
Effective cone area 49 cm2
V.C. diameter 38 mm
V.C. height -
Air gap height -

Lin. & max. excursion ±3/ ±7 mm
Air gap flux density -
BL 5.3 Tm
Moving mass incl. air 6.5 g
Net weight 0.51 kg

Outside diameter: 115.5mm
Cut out: 92mm
Depth: 48.4mm
25.4mm = 1" = 2.54cm
