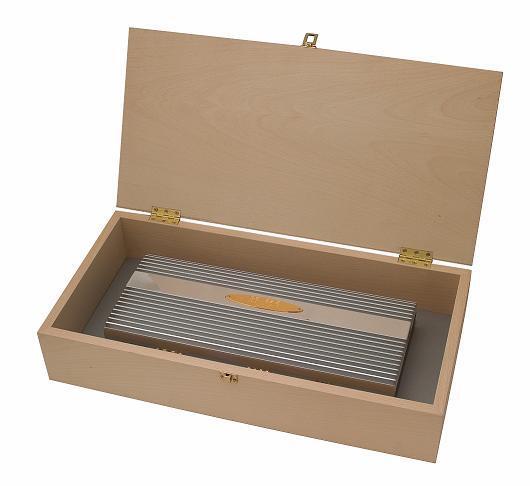

Amp Genesis Dual Mono Class A ( 10 เครื่องสุดท้ายในโลก )

หน้าแรก » ยานพาหนะ » ประดับยนต์ / เครื่องเสียง

Amp Genesis Dual Mono Class A ( 10 เครื่องสุดท้ายในโลก )

แบ่งปันให้เพื่อน



The Genesis Class A is a specialised development of the Dual Mono Xtreme intended purely for SQ applications such

as running front stage.

This amplifier runs in true Class A mode up to 20 watts per channel @ 4 ohms, and Class G circuitry takes over at

higher levels to allow up to 150W to be realised for listening at higher levels.

The amplifier can therefore draw less current than if it was rated for class A operation at 150W per channel. This

amplifier draws 11 Amps at idle as opposed to the 50+ Amps needed by a 150W per channel Class A amplifier.

The Class G function works on only the peaks of each cycle, and the amplifier returns to Class A operation as soon as

the instantaneous power level drops below 20W RMS. This ensures complete freedom from crossover distortion and

phase errors at all listening levels.

Exceptional low level linearity and musicality is thus combined with the capability to play at realistic levels.

Twin power supplies and true Dual Mono architecture throughout provide excellent soundstaging.

The Highpass filter can be set at any value between 15 - 200Hz, which allows it to be used as a subsonic filter for

subwoofer applications, as well as conventional highpass for component speakers. There is also a bypass switch which

completely removes the HP filter from the signal path.

Burr-Brown and Analog Devices preamp and filter IC’s are used, along with Sanken output transistors for exceptionally

warm, detailed and musical sound quality.

It is fitted with a temperature dependent fan output providing flexibility in cooling options, and two inbuilt fans control the

case temperature at an optimum level.

A limited production of 250 amplifiers will be made world wide, all individually numbered.

Brief Specifications:

Rated Power: 4 ohm 2 x 20 WRMS

Class A mode 2 ohm 2 x 10 W RMS ( This is not a misprint )

Typical Power: 4 ohm 2 x 26 WRMS

Class A Mode 2 ohm 2 x 13 W RMS

Typical Power: 4 ohm 2 x 150 WRMS

Class G Mode 2 ohm 2 x 250 W RMS

1.5 ohm: 2 x 300 W RMS

4 ohm Bridge: 1 x 500W RMS

3 ohm Bridge: 1 x 600WRMS

S/N : > 115dB A Wtd Ref full output

Input : 0.3 - 4.0 Volts RMS

Crossovers: High pass <20 Hz - 200Hz Fully variable

Lowpass, 50 Hz - 200Hz Fully variable

Filter slope: 12dB / octave ( 2nd order butterworth )

Fuse: 4 x 20 Amps

Size: 500 x 210 x 62




สอบถามรายละเอียดสินค้าราคาพิเศษอื่นๆ ได้ที่ ร้าน BETTER SOUND
เลขที่ 100/11 ซ.2 หมู่บ้านนักกีฬาแหลมทอง ถนนกรุงเทพกรีฑา กทม. 10250
(เปิดบริการทุกวัน เวลา 9.00-19.00 น.)
TEL. 02-7358176 หรือ 081-2402816
หรือทาง http://www.siam-shop.com/1713

ชำระโดยเงินสด และบัตรเครดิต Visa Master





ราคา: 0 บาทต้องการ: ขาย/ให้เช่า/แลก
ติดต่อ: Better Soundอีเมล์:
สภาพ: ใหม่ จังหวัด: กรุงเทพมหานคร
โทรศัพย์: 02-7358176 หรือ 081-2402816IP Address: 124.120.4.164
