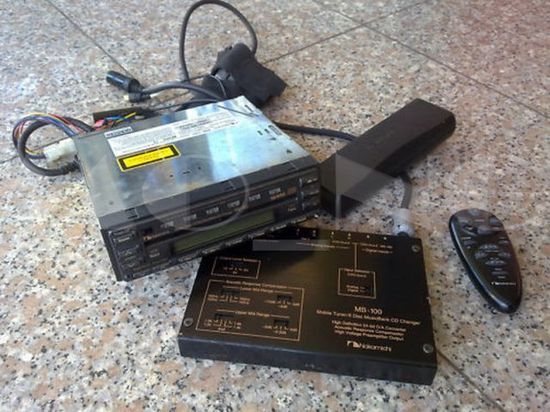

Nakamichi MB100 MOBILE TUNER / 6 DISC MUSICBANK มือสองสภาพสวย

Nakamichi MB100 MOBILE TUNER / 6 DISC MUSICBANK มือสองสภาพสวย

DAC/Preamplifier Unit
Preamplifier Section
Frequency Response: 15-30,000 Hz & 2 dB
Total Harmonic Distortion: 0.008% (1 kHz)
Output Level: 1.0V/2.0V/5.0V (selectable)

Tone Controls:

Bass: 12 dB @ 20 Hz
Midrange:12 dB @ 3 kHz
Treble:12 dB @ 20 kHz

Loudness: + 10 dB @ 20 Hz (volume level: 20)
D/A Converter Section
Frequency Response: 20-20,000 Hz
Sampling Frequency: 32 kHz / 44.1 kHz / 48 kHz (autoselected)
D/A Conversion System: 24-bit D/A converter with 8 x oversampling digital filter
S/N Ratio: Better than 95 dB
Dynamic Range: Better than 95 dB
Total Harmonic Distortion: 0.008% (1 kHz)
Tuner/CD Changer Transport Unit

FM Tuner Section

87.5-107.9 MHz in 200 kHz steps
87.5-108.0 MHz in 50 kHz steps

Usable Sensitivity: 15 dBf (IHF)
S//N Ratio: 60 dB (mono)
Stereo Separation: 35 dB

AM Tuner Section

Frequency Range:
530-1,710 kHZ in 10 kHz steps
531-1,602 kHz in 9 kHz steps

Usable Sensitivity: 32 dB

CD Transport Section

Changer Type: 6-Disc MusicBank& system


Outer Dimensions (WxHxD) / Approx. Weight

Tuner / CD Changer Transport Unit:178 x 46 x 176.7 mm / 1.3 kg

DAC / Preamplifier Unit:178 x 25 x 120 mm / 0.5 kg

OTHER ADVANCED PREAMPLIFIER FEATURES

• Bass/midrange/treble tone controls provide precise adjustment capability over a +12dB range at 20Hz, 3kHz, and 20kHz.
• Two coaxial digital inputs and two analog AUX inputs are provided to accommodate an external Nakamichi CD changer and other source components. (You can select AUX 2 or digital input 2, but not both.)
• All input and output terminals are gold-plated.
• Loudness and audio mute functions are provided.

OTHER ADVANCED HEAD UNIT FEATURES

• 3-inch (8cm) CDs can be played without adapters. (They can be played in any open slot but cannot be stored in the changer.)
• High-Performance PLL synthesizer tuner has 18 FM and 12 AM station prestets, Auto Memory, Auto DX/Local Switching, Preset Scan.
• Wireless remote control included.
• Front panel can be detached to deter theft.
• Available with either green or amber panel illumination.
• Quartz digital clock built in.
